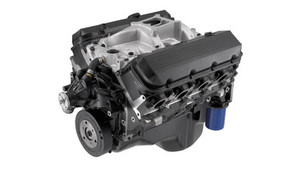

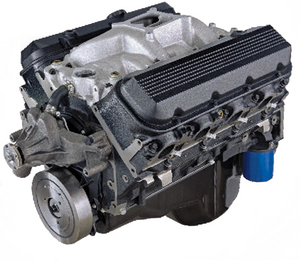

Big Block Crate Engine - HT502
When it comes to repowering your trusted Big-Block-powered pulling truck, don’t bother with the time it takes for rebuilding, when Chevrolet Performance’s HT502 offers an affordable, durable and powerful alternative.
It is built with a brand-new, latest-generation cylinder block with four-bolt main caps and features an all-forged rotating assembly for strength. A mild 8.75:1 compression ratio also makes it suitable for pump gas at all elevations. The assembly comes with the heads and a balancer installed.
An induction system, ignition, starter, water pump and other accessories are required to finish the engine. All of the necessary components are available from Chevrolet Performance.
INSTALLATION NOTES
- Requires the addition of carburetor, intake manifold, water pump, fuel pump, starter, distributor and ignition system (not included)
- Clutch linkage bosses are now drilled and tapped. When using cast-iron exhaust manifolds, lower head bolts may need to be replaced with bolts with shorter heads, for clearance
- 502 engines now have a mechanical fuel pump boss! (NOTE: There is NO fuel pump lobe behind the boss.)
- Comes with an externally balanced 14" automatic transmission flexplate; Use externally balanced flywheel P/N 14096987 and 11" clutch assembly for manual transmission applications
- Not intended for marine applications
TECH SPECS
- Part Number:19433156
- Engine Type:Chevy Big-Block V-8
- Displacement (cu in):502
- Bore x Stroke (in):4.470 x 4.00
- Block (P/N 19170540):Cast iron with 4-bolt main caps
- Crankshaft (P/N 10183723):Forged steel
- Connecting Rods (P/N 19170198):Forged steel, shot peened
- Pistons (P/N 12533507): Forged aluminum
- Camshaft Type (P/N 12552296): Hydraulic roller
- Valve Lift (in): .480 intake / .483 exhaust
- Camshaft Duration (@.050 in): 204° intake / 208° exhaust
- Cylinder Heads (P/N 12562917): Iron oval port; 118cc chambers
- Valve Size (in): 2.07 intake / 1.73 exhaust
- Compression Ratio: 8.75:1
- Rocker Arms (P/N 19260993): Stamped steel
- Rocker Arm Ratio: 1.7:1
- Recommended Fuel:Regular pump
- Ignition Timing: 34° Total @ 4,000 rpm
- Maximum Recommended rpm: 5,500
- Balanced: External
- Flexplate (P/N 10185034): 14"
NOTE: Distributor with melonized steel gear MUST be used with long-blocks and partial engines with steel camshafts, or engine damage will occur
