Big Block Crate Engine - 502 Partial Engine

Big Block Crate Engine - 502 Partial Engine

SKU:
G19433158
£9,591.10
(No reviews yet)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added

Special order from USA - ETA to arrive is 8-10 weeks. If you require an express air-freight please contact us for a quote.

Description

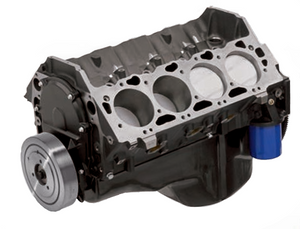

Similar to the HT502 and 502 HO engine assemblies. Includes a brand new four-bolt block and forged rotating assembly, but delivered without the cylinder heads. Assembly includes the balancer, oil pan and timing gear set.

TECH sPECs

  • Part Number: 19433156
  • Engine Type:Chevy Big-Block V-8
  • Displacement (cu in):502
  • Bore x Stroke (in):4.470 x 4.00
  • Block (P/N 19170540):Cast iron with 4-bolt main caps
  • Crankshaft (P/N 10183723): Forged steel
  • Connecting Rods (P/N 19170198):Forged steel, shot peened
  • Pistons (P/N 12533507): Forged aluminum
  • Camshaft Type (P/N 12552296): Hydraulic roller
  • Valve Lift (in):.480 intake / .483 exhaust
  • Camshaft Duration (@.050 in): 204° intake / 208° exhaust
  • Cylinder Heads (P/N 12562917): Iron oval port; 118cc chambers
  • Valve Size (in):2.07 intake / 1.73 exhaust
  • Compression Ratio:8.75:1
  • Rocker Arms (P/N 19260993): Stamped steel
  • Rocker Arm Ratio:1.7:1
  • Recommended Fuel:Regular pump
  • Ignition Timing: 34° Total @ 4,000 rpm
  • Maximum Recommended rpm: 5,500
  • Balanced: External
  • Flexplate (P/N 10185034): 14"

NOTE: Distributor with melonized steel gear MUST be used with long-blocks and partial engines with steel camshafts, or engine damage will occur.
