T56 Super Magnum Six-Speed Manual Transmission

T56 Super Magnum Six-Speed Manual Transmission

SKU:
G19352208
£5,100.00
(No reviews yet)
Width:
56.85 (cm)
Height:
56.52 (cm)
Depth:
100.33 (cm)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added

Special order from USA - ETA to arrive is 8-10 weeks

Description

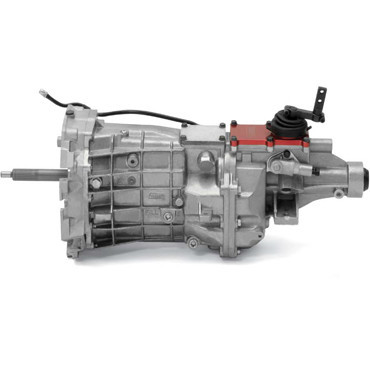

This high-torque capacity TREMEC six-speed manual is designed for custom, retro-fit installations with Chevrolet Performance crate engines. It has a 700-lb.-ft. torque capacity and features a 40-tooth reluctor ring.

  • 700 lb.-ft. maximum torque capacity
  • Exterior case similar to fourth-generation F-body with the stronger, high-capacity gear sets, input shaft and output shaft used in the TREMEC TR6060
  • 26-spline input shaft
  • 31-spline output shaft
  • Gear ratios: 2.66 (1), 1.78 (2), 1.30 (3), 1.00 (4), 0.80 (5), 0.63 (6)
  • Slip-yoke design
  • 40-tooth reluctor ring that’s necessary for use with electronic vehicle speed sensors used with Chevrolet Performance controllers
  • Two-position shifter plate included, with third position built into the transmission
  • Kit includes shifter handle and Chevrolet Performance-logo ball-type shift knob
  • Approximately 33.6 inches long with bell housing attached (bell housing included in separate installation kit)

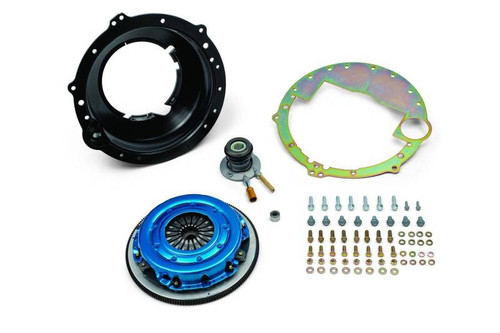

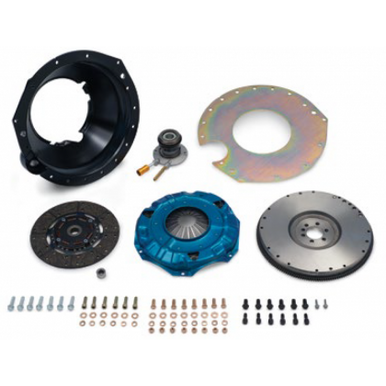

  • Use with installation kit P/N 19301625, which is compatible with all LS engine with a 6-bolt flange.
Additional Information
Transmission Type:
6 Speed
Transmission Type:
Manual
