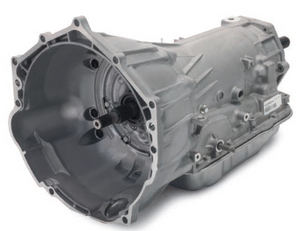

SuperMatic™ 4L75-E Four-Speed Automatic Transmission

SuperMatic™ 4L75-E Four-speed Automatic

• Transmission (remanufactured)
• Based on the 4L65-E/4L70-E- Tested up to 650 lb-ft. of torque
• Features five-pinion gearsets, heat-treated stator shaft splines, induction-hardened turbine shaft, 8-friction-plate 3–4 clutch and specific valve-body calibration
• Unique, high-strength input housing
• Higher-capacity servo than 4L65E and 4L70E
• Performance 2–4 band
• Gear ratios: 1st: 3.06, 2nd: 1.62, 3rd: 1.00, 4th: 0.70
• Torque converter not included

NOTE: Use with electronic controller P/N 19332775 for carbureted and Ram Jet applications. Use with electronic controller P/N 19302405 with Chevrolet Performance LS fuel-injected applications."
