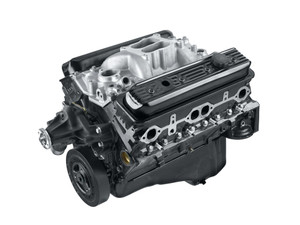

Small-Block Crate Engines - HT383E

When it comes to breathing new life into your trusted truck, the HT383E delivers. If you are going to go off-road racing or hill-climbing with your old half-ton truck, the HT383E provides a great boost in horsepower and torque, compared to the
original small-block 350 that came from the factory.

To make the installation easy and economical, you can simply swap the intake manifold, throttle body, exhaust manifolds and other engine accessories from the original 350 engine. The engine uses a brand-new four-bolt-main iron block, a forged steel stroker crankshaft (including a 4X crankshaft position sensor), a smooth roller camshaft and durable cast-iron Vortec-style cylinder heads. It comes with a new water pump and a vibration dampener that would normally be replaced during a complete rebuild of your original engine.

Save money and enjoy increased power and torque when you choose the HT383E crate engine, designed and tested by Chevrolet Performance engineers.

INSTALLATION NOTES

• Requires the reuse of the stock intake manifold, distributor, wiring harness and fuel injection system
• Due to calibration variances between half-, three-quarter- and one-ton vehicles, this engine is designed for half-ton trucks and SUVs only
• Comes with 12.750" externally balanced 153-tooth automatic transmission flexplate. Requires externally balanced flywheel for manual transmission.
• Has right-side dipstick
• Not available as a partial engine

TECH SPECS

• Part Number: 19435449
• Engine Type: Chevy Small-Block V-8
• Displacement (cu in): 383
• Bore x Stroke (in): 4.005 x 3.800
• Block (P/N 19433406): Cast iron with 4-bolt main caps
• Crankshaft (P/N 12489436): 4340 forged steel; includes 4X crankshaft position sensor
• Connecting Rods (P/N 19355718): Heavy-duty forged steel
• Pistons (P/N 12499103): Hypereutectic aluminum
• Camshaft Type (P/N 14097395): Hydraulic roller
• Valve Lift (in): .431 intake / .451 exhaust
• Camshaft Duration (@.050 in): 196° intake / 206° exhaust
• Cylinder Heads (P/N 12691728): Vortec iron; 62cc chambers
• Valve Size (in): 1.940 intake / 1.500 exhaust
• Compression Ratio: 9.4:1
• Rocker Arms (P/N 10089648): Stamped steel
• Rocker Arm Ratio: 1.5:1
• Water Pump (P/N 89060527): Cast iron
• Recommended Fuel: Regular pump
• Maximum Recommended rpm: 5,000
• Balanced: External
• Flexplate (P/N 14088765): 12.750"

NOTE: Distributor with melonized steel gear MUST be used with long-blocks and partial engines with steel camshafts, or engine damage will occur.
