Chevrolet LSX454 7.4L 620HP Engine -19417357

*IMPORTANT INFORMATION*
This item is currently on back order with our suppliers.
If you wish to be notified once stock is available, please complete the Contact Us form providing an email address, phone number and the product you are interested in. We will then update you when stock is available

The LSX454 is filled with an all-forged, super-tough rotating assembly and features a pair of our new, deep-breathing LSX six-bolt cylinder heads. It also comes dressed with great-looking, orange powder-coated valve covers with engraved “LSX454” logos.

We deliver the LSX454 without an intake manifold and other accessories. With a carburetor and high-flow Chevrolet Performance intake manifold, the LSX454 is good for about 620 horsepower and 600 lb-ft of torque, or about 580 hp and 600 lb-ft with fuel injection.

Use the LSX-LS7 single-plane carbureted intake manifold (P/N 19244033). The LSX454 valve covers do not include provisions for mounting ignition coil brackets. Aftermarket or custom relocation brackets must be obtained. It also includes an eight-bolt crankshaft flange that may require an adapter for use with some transmissions.

Power: 620 HP @ 6200 RPM, 590 ft. lbs. of torque @ 4800 RPM
Displacement: 454 CID, 7.4L
Bore x Stroke: 4.185” x 4.125”
Compression Ratio: 11:1
Recommended Fuel: 92 Octane
Block: LSX Cast Iron with 6 bolt cross bolted main caps
Crankshaft: 4340 Forged Steel, with 8 bolt flange
Connecting Rods: 4340 Forged Steel
Pistons: Forged Aluminum

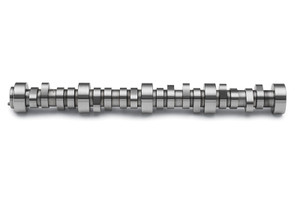

Camshaft: Steel Hydraulic Roller Tappet
Cam Lift: .635” Intake / .635” exhaust
Cam Duration @ .050”: 236 deg. Intake / 246 deg.
Exhaust Lobe Separation: 110 Deg
Cylinder Heads: Aluminum LSX LS7 Rectangular style ports
Combustion Chamber: 70cc
Valves: 2.200” Intake/ 1.610” Exhaust
Rocker Arms: Cast Roller Trunion, 1.8:1 Ratio
Balance: Internal
Reluctor: 58X
Maximum GM Recommended RPM: 6500

Engine Includes:
• Fully GM assembled long block
• Harmonic Balancer
• Front timing cover
